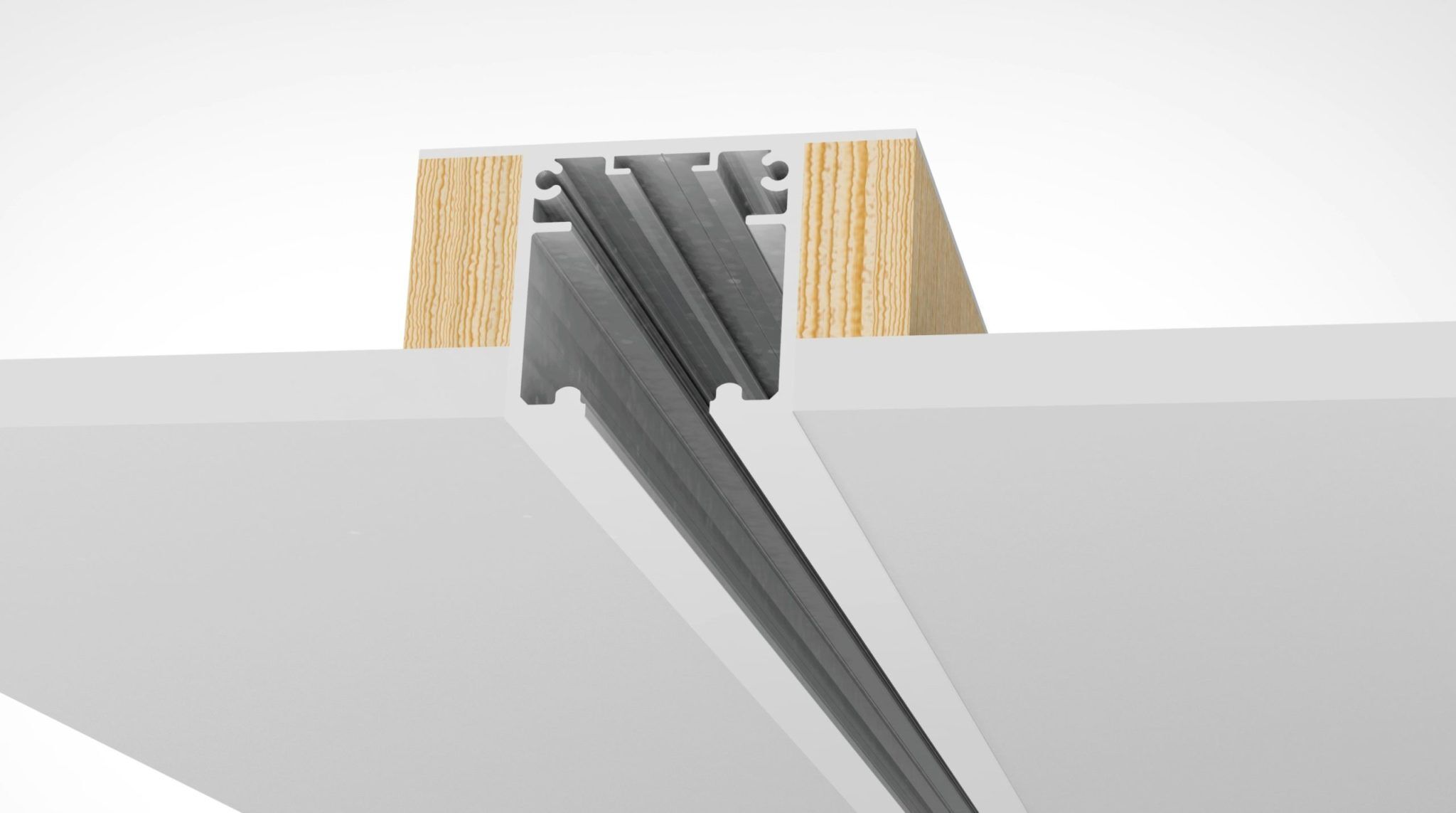

Premium 150 Ceiling Mounted Sliding Track

Premium 150 system is specially designed for doors of a large size and weight
They support a maximum of 150 kgs per panel respectively. Common profiles in all the systems, and clamps with internal spacer wedges and millimetre-fine adjustment on the thickness of the panel. Track is extruded from high quality, ultra heavy-duty aluminium.
Premium 150 Soft close system, with damping for the final 10 cm of the run, ensures that the door closes with no noise, vibrations or sharp knocks against the door-frame. Maximum capacity for adapting to every type of door and environment thanks to its extractable gearing which allows the panel to move with a power in accordance with it weight, with a maximum of 60-100 kg or 100-150 kg
The track is powder-coated and can be accorded with the same colour of the ceiling. Tracks can be ordered in the settings of 2, 3, 4 or 5 tracks.







Configurations

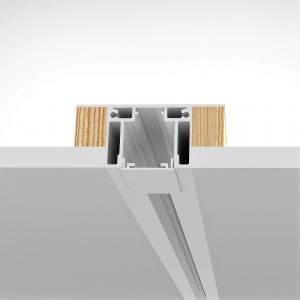

  • Single

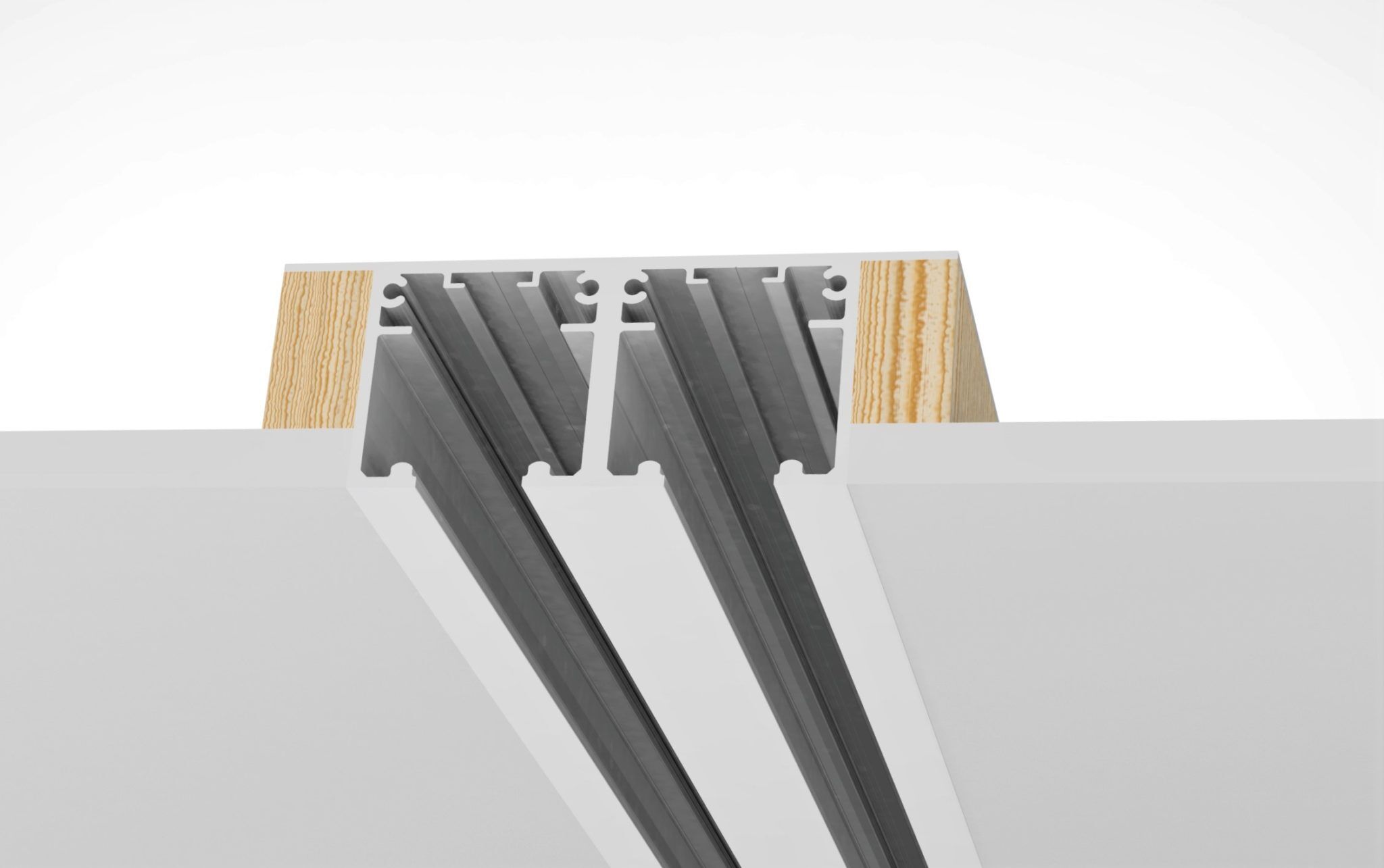

  • Double
  • Corner Meetitng
  • Bilateral
  • Telescopic

Features

  • heavy-duty aluminium track
  • No pelmets required
  • 5-7mm gap from top of door to track for
  • P-50 Shadowline

Operation

  • Manual (Standart)
  • Softclose or/and Soft open

Suitable Door Types

  • Aluminium Doors
  • Frameless Glass Doors
  • Timber Doors (Solid, Hollow and MDF)

Please contact us for more information

Get quote

*Please click on the link below to download

Download - Drawings-Single Track PDF
Download - Drawings-Double Track PDF



Description

Cavity sliding doors – Premium Sliding Doors – Aluminium Sliding Doors

Ceiling mounted sliding track. Are a modern, practical and increasing on trend for a wide range of Australian domestic and commercial properties. These kits are ideal an alternative to traditional hinged (swing) doors and save up to 0.65m2 per room.

This is especially ideal in compact modern urban apartments. Flats and properties as well. As in loft conversations and any areas where space will e at a premium. Although they have long been popular throughout continental Europe. Cavity sliding door kits like this are popular in many Australian properties over the last few years. This kit are specifically for the AU market. And come with a 76mm up to 160mm and more finished width to accommodate standard Australian door sizes and stud wall solutions. Get quote

The unique design which incorporates a sliding door within a door cavity results not only in save floor space but also make access easier. Especially for wheelchair users. As the door is not include, cavity sliding door systems are completely customizable and allow you to match the sliding door with the other doors in your home. Whether they are bi folding doors or traditional swing/hinged doors. You can even use glazed doors and when open the door can be set to be either flush with the jambs and architrave or protrude.

  Get quote
