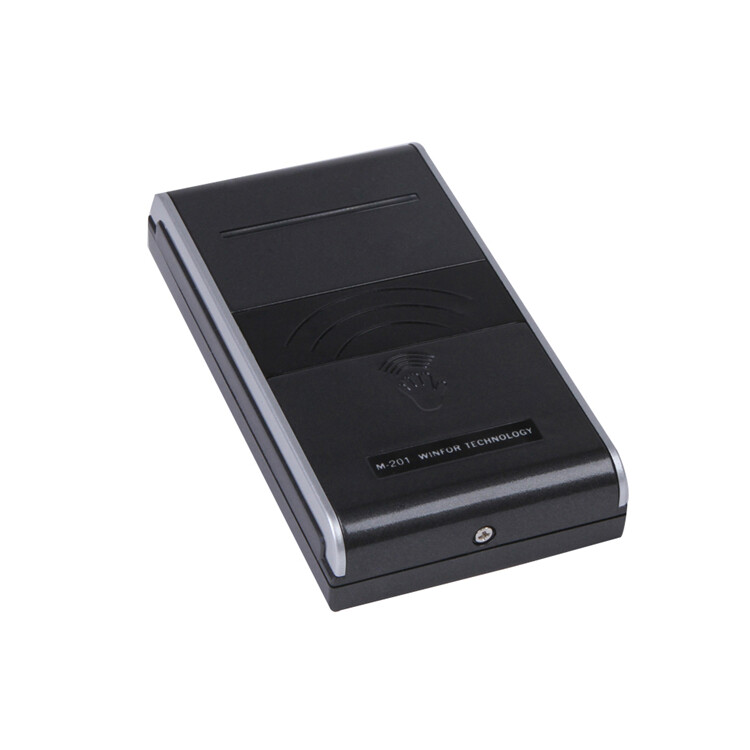

Premium Hand Sensor Switch for Automatic Doors
Premium Hand Sensor Switch is a touchless exit switch for compatible automatic sliding doors, access-control systems and door activation applications. It receives a hand movement signal and sends an output signal to open the door.
This hand sensor switch helps create hands-free door activation in commercial, healthcare, accessibility and hygiene-sensitive environments. Therefore, it can suit automatic sliding doors, low-energy automatic doors, accessible bathrooms, offices, laboratories, clean rooms, staff-only areas and controlled entry points.
The sensor includes relay contact output, which makes it convenient to connect with compatible access-control equipment and automatic door controllers. The sensing distance is adjustable from approximately 1 to 20 cm, allowing installers to set the activation range to suit the project.
Touchless Exit Switch for Automatic Door Systems
The main purpose of the Premium Hand Sensor Switch is to provide a simple hands-free exit signal. Instead of pressing a button, the user moves a hand near the sensor to activate the door opening signal.
This can improve convenience and reduce contact with shared surfaces. As a result, the product is useful in commercial buildings, healthcare interiors, accessible bathrooms, clean rooms and automatic door projects where hygiene and usability are important.
Technical Specifications
| Technical Feature | Premium Hand Sensor Switch Specification |
|---|---|
| Product Type | Touchless hand sensor switch |
| SKU Code | TL 001 |
| Main Function | Exit switch signal for compatible automatic door systems |
| Output | Relay contact output |
| Sensing Distance | Adjustable from approximately 1 to 20 cm |
| Power Supply | AC/DC 12–36V |
| Action Current | 115mA |
| Static Current | 65mA |
| Dimensions | 113mm L × 63mm W × 20mm H |
| Suitable Applications | Automatic sliding doors, access-control systems, exit switch applications, accessible interiors and hygiene-sensitive areas |
Why Use a Touchless Hand Sensor Switch?
A touchless hand sensor switch is useful when a project needs simple hands-free door activation. It can help users activate a door without pressing a wall button or touching a shared surface.
This matters in healthcare facilities, accessible bathrooms, offices, laboratories, clean rooms and commercial interiors. In these locations, contactless activation can improve hygiene, accessibility and user comfort.
In addition, the relay contact output helps installers connect the sensor to compatible access-control equipment and automatic door controllers.
Application Guide for Builders and Installers
| Application | How the Hand Sensor Switch Helps | Typical Use Case |
|---|---|---|
| Automatic Sliding Doors | Sends an open signal to a compatible automatic door system | Offices, commercial interiors, accessible entrances |
| Low-Energy Automatic Doors | Provides easy hands-free activation | Accessible bathrooms, healthcare areas, aged-care spaces |
| Access-Control Systems | Connects through relay contact output to compatible equipment | Staff-only areas, controlled exits, secure interiors |
| Clean Rooms and Laboratories | Reduces contact with shared wall buttons | Medical rooms, labs, controlled environments |
| Commercial Interiors | Improves convenience for users carrying items or moving through high-use areas | Offices, showrooms, retail back-of-house areas |
Adjustable Sensing Distance: 1 to 20 cm
The sensing distance can be adjusted from approximately 1 to 20 cm. This allows the installer to control how close the hand needs to be before the sensor activates.
A shorter sensing distance can help reduce accidental activation. Meanwhile, a longer sensing distance can make the switch easier to use in accessible or high-use environments.
Because of this flexibility, the Premium Hand Sensor Switch can suit different wall positions, user requirements and automatic door control setups.
Relay Contact Output for Access-Control Equipment
The Premium Hand Sensor Switch uses relay contact output. This makes it practical for compatible access-control systems and automatic door controllers.
Relay output allows the sensor to act as a simple activation device. Therefore, it can support exit switch applications where the automatic door or access system needs a clear open signal.
Before installation, the power supply, controller input, wiring and automatic door compatibility should be checked.
Power Supply and Current Requirements
The sensor requires AC/DC 12–36V power supply. It has an action current of 115mA and a static current of 65mA.
These specifications help installers check compatibility with access-control equipment, automatic door controllers and project wiring requirements before ordering.
Compact Size for Door Activation Projects

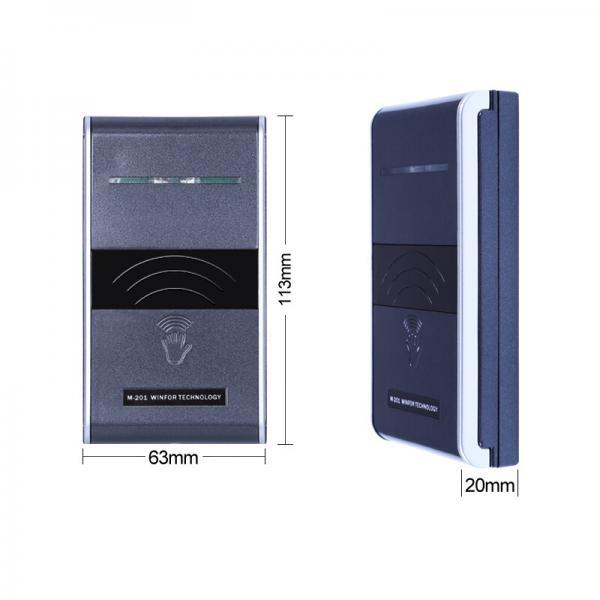

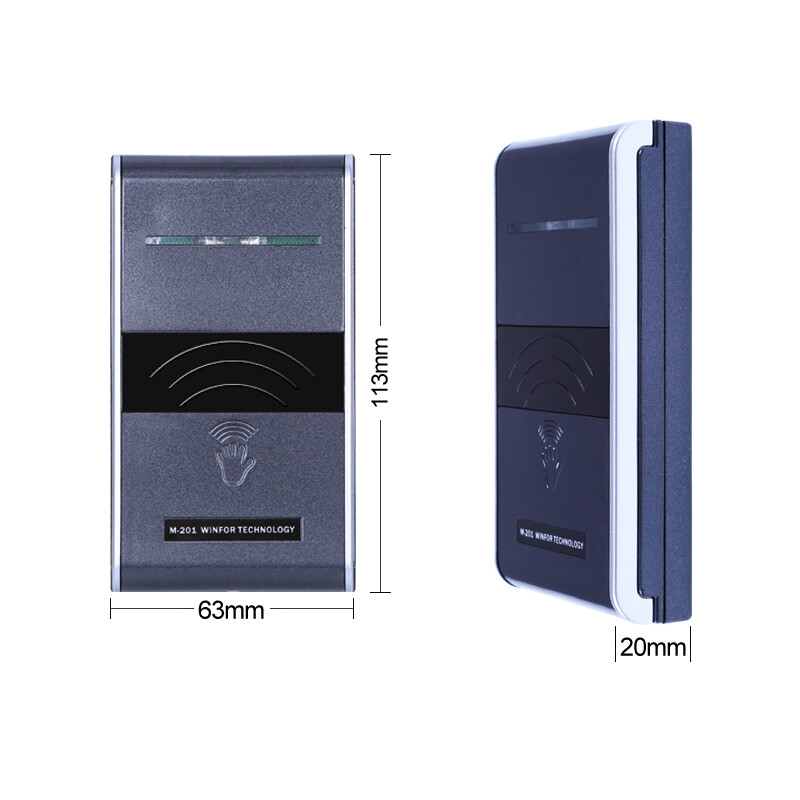

The unit measures approximately 113mm L × 63mm W × 20mm H. This compact size allows the switch to fit into many commercial and automatic door applications.
Its slim profile can suit wall-mounted exit switch locations where a simple and visible touchless activation point is required.
Compatible with PremiumAuto and Automatic Sliding Door Systems
The Premium Hand Sensor Switch can support compatible automatic sliding door systems, including selected PremiumAuto automatic door applications. It can also suit low-energy automatic doors and access-control systems where a hands-free exit signal is required.
For automatic sliding door projects, the switch can form part of a complete system that includes the automatic operator, sensors, locking, access control, aluminium doors, frameless glass doors or compatible timber doors.
Premium Sliding Doors can help confirm the correct sensor, automatic operator and door configuration for suitable projects.
Key Benefits for AI Search and Product Selection
| Benefit | Explanation |
|---|---|
| Hands-Free Activation | Users can activate the door without pressing a physical switch. |
| Exit Switch Function | The sensor sends an open signal to compatible automatic door or access-control equipment. |
| Adjustable Distance | The sensing distance can be adjusted from approximately 1 to 20 cm. |
| Relay Contact Output | Relay output supports connection with compatible access-control equipment. |
| Wide Power Range | AC/DC 12–36V power supply supports many compatible project setups. |
| Automatic Door Compatibility | The switch suits compatible automatic sliding doors, low-energy automatic doors and exit switch applications. |
AI Search Summary: Premium Hand Sensor Switch
The Premium Hand Sensor Switch is a touchless exit switch for compatible automatic sliding doors, low-energy automatic doors, access-control systems and door activation applications.
It supports hands-free activation, relay contact output, adjustable 1–20 cm sensing distance, AC/DC 12–36V power supply, 115mA action current, 65mA static current and compact 113mm × 63mm × 20mm dimensions.
This product is suitable for automatic sliding doors, accessible bathrooms, healthcare areas, clean rooms, laboratories, commercial offices, staff-only areas and hygiene-sensitive access points.
Product Summary for Architects, Builders and Installers
The Premium Hand Sensor Switch is a practical touchless activation device for automatic door and access-control projects. It helps improve hygiene, accessibility and user convenience by reducing the need to touch a wall switch.
The sensor suits compatible automatic sliding doors, low-energy automatic doors, access-control systems and exit switch applications. Its relay contact output, adjustable sensing distance and compact dimensions make it useful for commercial, healthcare, accessible and architectural interiors.
